Oxidized Bitumen 150/5
oxidized bitumen 150/5
Oxidized bitumen 150/5 is based on petroleum bitumen which is made by blowing bitumen 60/70 by hot air. This type of bitumen is hard and breakable. Oxidized bitumen 150/5 is the semi-solid oxidized grade of petroleum bitumen categorized in polycyclic aromatic hydrocarbons is normally used for different purposes in the construction industries. bitumen 150/5 should be heated double temperature (200ᵒ-300ᵒC) against the softening point to be able to have flow and viscosity. Normally heating of such hard oxidized bitumen should be arranged via hot oil by circulation inside of the isolated jacket.
Uses of oxidized bitumen 150/5
Oxidized bitumen 150/5 uses in the chemical, raw material for bitumen coat, lacquers, varnishes, paper-pulp-board, textile processing, pavement ,crack seal and repairmen, civil works, bitumen coat for piping, roofing, construction industries; sealing and insulating buildings, adhesive, construction materials additive, road construction, dust-binding, insulating and impregnating agent, isolation bitumen membrane sheet, make rubber and plastic products. bitumen 150/5 products are for paving, roofing; also used in asphalt-based paints for corrosion protection of metals, in lining public works structures, adhesives in electrical laminates, base for synthetic turf; typical uses for bitumen 150/5 include roofing, pipe coating, hydraulic applications, 150/5 is mainly using in paint manufacturing and coating in hot area.
Application of oxidized bitumen 150/5
Storage/handling of oxidized bitumen 150/5
Oxidized bitumen 150/5 has 10 years validity with multi-time heating and cold, please refer to MSDS. It is better to keep the bitumen 150/5 under shelter and out of the rain, the sun.

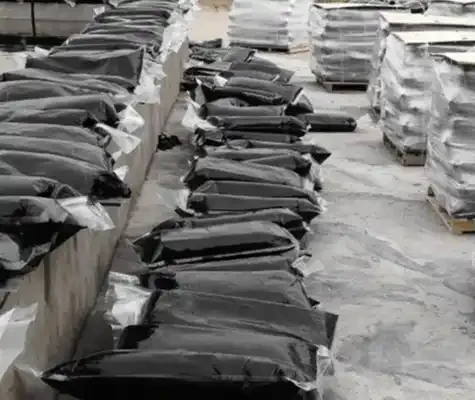

Packing of oxidized bitumen 150/5
Merco oxidized bitumen 150/5 in various packing including. bitumen 150/5 is available in 25 kg meltable and craft bag, drum, and bulk. Normally oxidized bitumen packing on the pallet and 40 bags can stack on the pallet. 20 pallet can load to the 20ft container.
Specification of oxidized bitumen 150/5
Analysis oxidized bitumen 150/5
| Bitumen 150/5 | Test method | Unit | Specification |
| Specific gravity @25/25 C | ASTM D70 | (Kg/m3) | 1.05 approx. |
| Penetration @ 25°c | ASTM D5 | mm/10 | 4/6 |
| Softening point °c | ASTM D36 | °C | 145/155 |
| Ductility @25 °c | ASTM D113 | Cm | 1.5min |
| Loss on heating(wt) % | ASTM D6 | Wt. % | 0.2 max |
| Flashpoint c | ASTM D92 | °C | 250 min |
| Solubility is CS2(wt) % | ASTM D4 | Wt. % | 99.5 max |
| Spot test | A.A.S.H.O.T102 | — | Negative |
